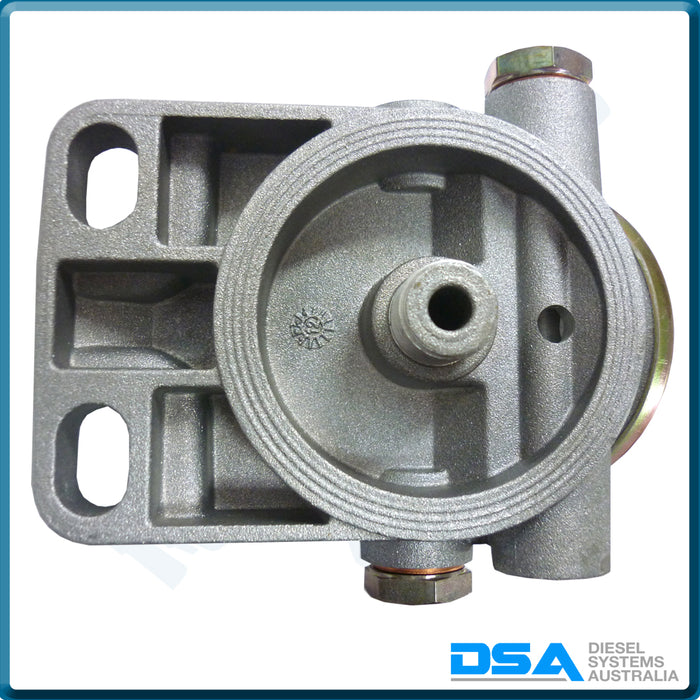

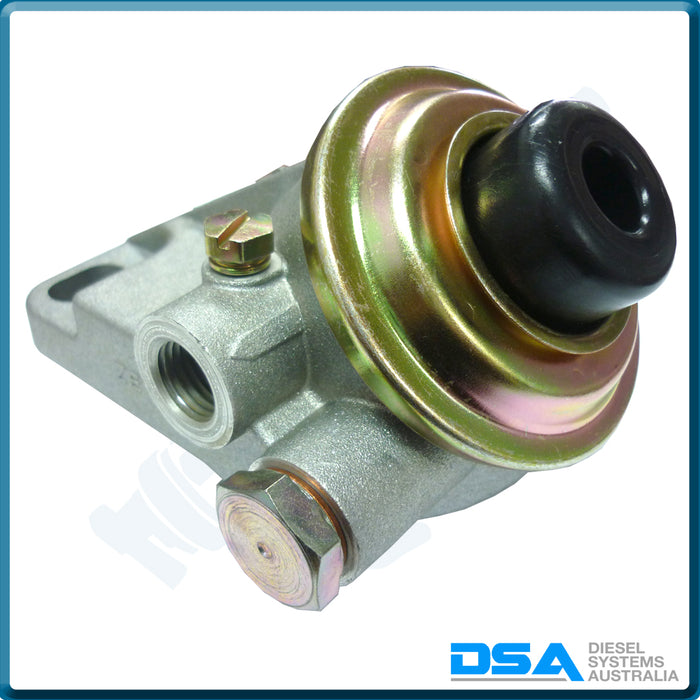

DX85017 Horizontal Mount Top (14x1.5mm R~L Flow Spin On)
DX85017 Horizontal Mount Top (14x1.5mm R~L Flow Spin On)
DX85017 Horizontal Mount Top (14x1.5mm R~L Flow Spin On)

DX85017 Horizontal Mount Top (14x1.5mm R~L Flow Spin On)

$138.60 Incl GST
SKU: DX85017
We do try to keep our stock online up to date. If we are out of stock, we will either credit or back order.
Horizontal Head (14x1.5mm- R~L Flow Spin On)
Port Thread Size: 14x1.5mm
Spindle Thread Size: 16x1.5mm
Distance Between Mounting Holes: 48mm from centre to centre Approx.
Applications
Bosch, Fiat, Lancia

Cross References
Bosch 0450126009, 0 450 126 009
Fiat 76069900, 44409520
Franceschi AD-7025/2
Spaco 09142, 09795
Star 49100

Please note all care has been taken when compiling the information on these parts.  If any information is incorrect, please advise "DSA" ASAP so that we can rectify the issue.

Photos and sizing are of the part held in stock at the time, sometimes there may be slight differences in colour or appearance due to the manufacturing process, or the changing of the supplier.

Diesel Systems Australia takes no responsibilty for any incorrect information supplied.
