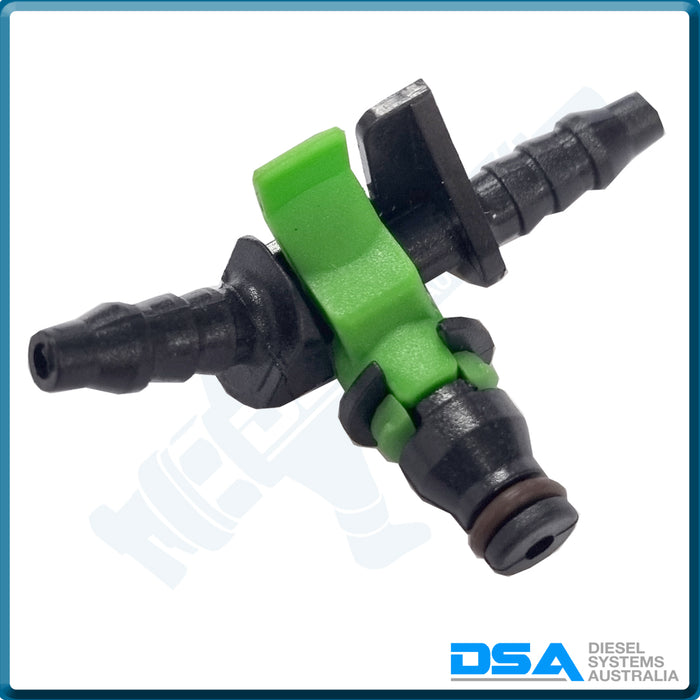

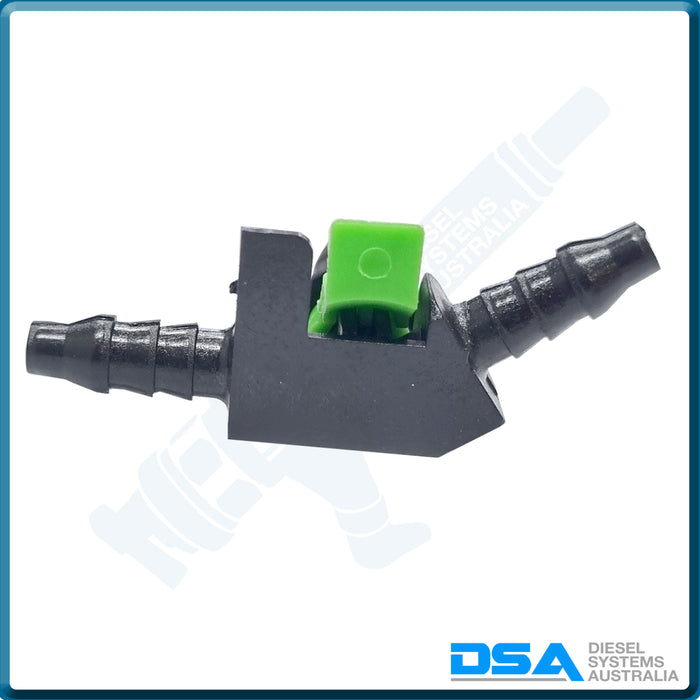

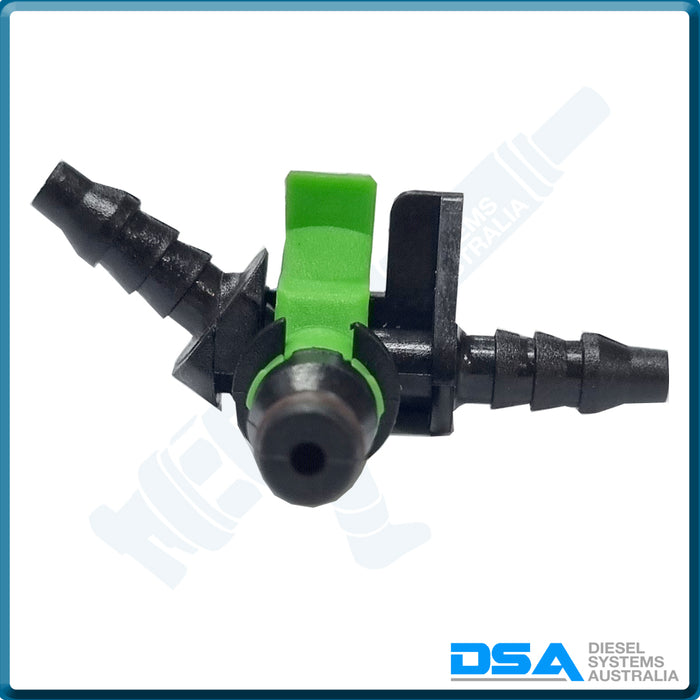

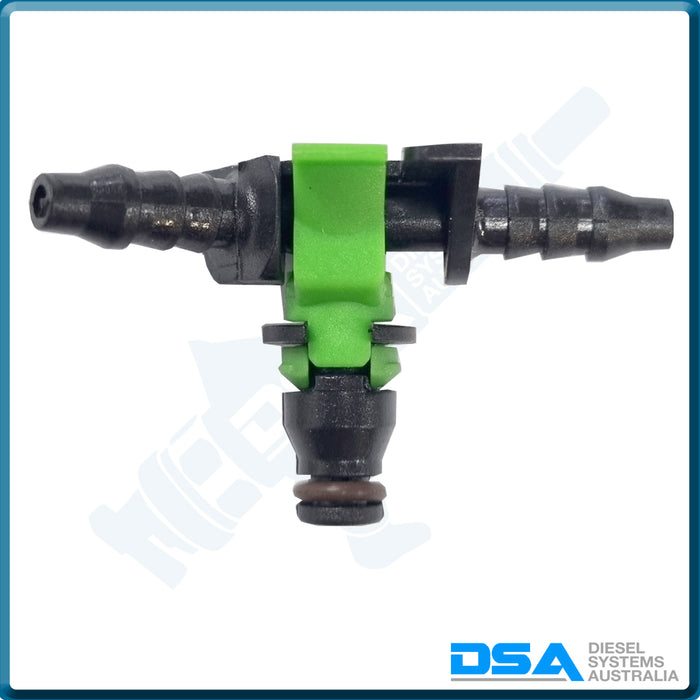

2 Way Delphi Diagnosis Connection
Pipe: 4mm
Inlet: 6mm
Note: Replacement Service O'Ring CMR086-05
Applications
Delphi Common Rai Injectors and Pumps
This connector is designed to diagnose the diesel injectors and injection pumps used in modern Delphi type Common Rail systems without dissambling them from the engine They allow you to quickly and reliably connect the tubes of the measuring bottles to the injectors return conections.
Ford Focus Mk3 2.0 TDCI (2010-), Mondeo Mk4 2.0 TDCI (2007-2015), Galaxy Mk2 2.0 TDCI (2006-2015), S-Max Mk1 2.0 TDCI (2006-2014), C-Max II 2.0 TDCI (2010-), Grand C-Max 2.0 TDCI (2010-), Kuga Mk1 2.0 TDCI (2008-2012), Kuga Mk2 2.0 TDCI (2012-), Citroen C4 Grand Picasso I 2.0 HDI (2009-2013), C4 II 2.0 HDI / BlueHDI (2009-), C4 Picasso I Mpv 2.0 HDI (2009-2013), C5 III 2.0 HDI / BlueHDI (2009-), C8 2.0 HDI (2006-), Peugeot 308 2.0 HDI (2007-2014), 407 (2009-2010), Expert Tepee 2.0 HDI (2009-), Expert Van 2.0 HDI (2009-)
Cylinders: -
Engine Model: -
Injector Reference: -
Pump Reference: -
Note: Complete Line 9M5Q9K022BB
Cross References
Delphi YDT480
Star 60151/139
Please note all care has been taken when compiling the information on these parts. If any information is incorrect, please advise "DSA" ASAP so that we can rectify the issue.
Photos and sizing are of the part held in stock at the time, sometimes there may be slight differences in colour or appearance due to the manufacturing process, or the changing of the supplier.
Diesel Systems Australia takes no responsibilty for any incorrect information supplied.
